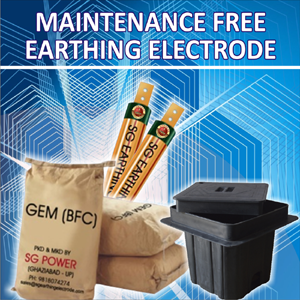

Maintenance Free Earthing Electrode

Product Description

SG ( Safe Ground ) is a useful source for maintenance free earthing. A safest earthing Electrode is SG Earthing Electrode. Maintenance free Earth Electrodes are a result of continual efforts towards Innovation. The two concepts in which Electrodes are provided are Pipe in pipe and Strip in Pipe. We can make available Electrodes in both, standard combinations as well as customized specifications. No maintenance is ensured by Earth Enhancing compound - Hygroscopic in nature. These electrodes can take care of all kinds of fault current surges.

We make available three types of Electrodes:

1) Pure Copper earth electrode - Pure copper pipe is used in the construction of this type of electrode. Pipe in pipe technology – Inner and outer pipes in this electrode is made of pure copper. Strip in Pipe – Strip made of pure copper is the outer pipe on this type of electrode.
2) Copper bonded earth electrode – Pure copper strip and copper plated pipes are used in this type of electrode.
3) GI Earth Electrode – Galvanized iron made pipe and strips are used in this type of electrode.

In comparison to conventional earthing, chemical earthing is better as it does not uses charcoal & salt, but pours ground enhancing chemical which surrounds the sealed electrode and the chemical dissipates ions in dry condition as well which eliminates the requirement of regular watering in chemical earthing.

Maintenance Free Earthing Electrode Product Details:

1) Available Electrode Diameter : 40-75 mm
2) Available Length : 2000-3000 mm
3) Available Internal Strip Size : 20 X 03-50 X 06 mm
4) Length of Rod : 2000-3000
5) Features : earthing
6) Usage/Application : earthing



Specifications:

Models	Electrode Diameter (mm)	Length (mm)	Internal Strip Size (mm)	Conductive mineral filled
SG 2402503 GI	40	2000	20 X 03	Yes
SG2402504 GI	40	2000	20 X 04	Yes
SG3402504 GI	40	3000	20 X 04	Yes
SG2503004 GI	50	2000	30 X 04	Yes
SG3503004 GI	50	3000	30 X 04	Yes
SG2755006 GI	75	2000	50 X 06	Yes
SG3755006 GI	75	3000	50 X 06	Yes



Advantages:

Maintenance Free Earthing Electrode is a reliable, maintenance free solution with low-impedance grounding.

Customers can buy Maintenance Free Ground Electrode from SG Power, a Chemical Earthing manufacturer, in order to save human life and machines lives.
