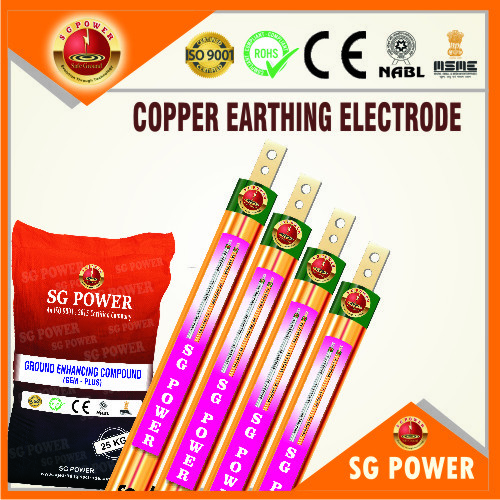

Copper Earthing Electrode

Copper Earthing Electrode

1000.00 - 5000.00 INR/Piece

Product Details:

  • Diameter 40-75 Millimeter (mm)
  • Product Type Copper Earthing Electrode
  • Material Pure Copper
  • Application Earthing
  • Shape Round
  • Dimension (L*W*H) 25x03-50x06 Millimeter (mm)
  • Color Copper
  • Click to view more
X

Copper Earthing Electrode Price And Quantity

  • 50 Piece
  • 1000.00 - 5000.00 INR/Piece

Specifications Earthing Electrode

  • 25x03-50x06 Millimeter (mm)
  • 40-75 Millimeter (mm)
  • Copper
  • Earthing
  • Round
  • Copper Earthing Electrode
  • Pure Copper

Copper Earthing Electrode Trade Information

  • 1000 Piece Per Day
  • 2 Days
  • Yes
  • carton box
  • CE,ISO,ROHS,CPR

Product Description

A team of experienced professional manufactures this Copper Earthing Electrode with the implication of innovative techniques. Our provided electrode is a perfect product for earthing solution in oil & gas refineries, power plants, water treatment industry, telecommunication areas and other fields. Also, it protects electrical equipment from high voltage. This Copper Grounding Electrode is filled with SG GEM PLUS compound to reduce earth resistance. It is available in different copper bonding thicknesses, lengths and diameters.



Copper Earthing Electrode Key Points:

  • Offers excellent current conductivity.
  • Steel core enhances life of earth system.
  • High durability and anti-corrosive surface finish.
  • Offer a lower resistance so that the more likely the lightning, surge and fault currents will flow safely and dissipated to the ground.
  • The back fill compound form a layer around the electrode and continuously increase the soil conductivity, further reducing impedance and resistance of the soil.
  • It is easy to install. It can be installed indoors or outdoors and in almost all soil condition.
  • It offers a maintenance free solution. There is no need of extra water pouring at regular interval like conventional earthing as the back fill compound poses the nature of retaining the moisture for long time.
  •

Earthing Electrode Details:

  • Available Electrode Diameter : 40-75 mm
  • Available Length : 2000-3000 mm
  • Available Internal Strip Size : 25x03-50x06 mm
  • Coating Thickness (Microns) : upto 250
  • Conductor Size (mm) : 12 mm - 25 mm
  • Usage/Application : earthing


Technical Specifications:

Models

Electrode Diameter (mm)

Length (mm)

Internal Strip Size (mm)

Conductive Mineral Filled

SG2402503 CB

40

2000

25x03

Yes

SG2402504 CB

40

2000

25x04

Yes

SG3402504 CB

40

3000

25x04

Yes

SG2503004 CB

50

2000

30x04

Yes

SG3503004 CB

50

3000

30x04

Yes

SG2755006 CB

75

2000

50x06

Yes

SG3755006 CB

75

3000

50x06

Yes
