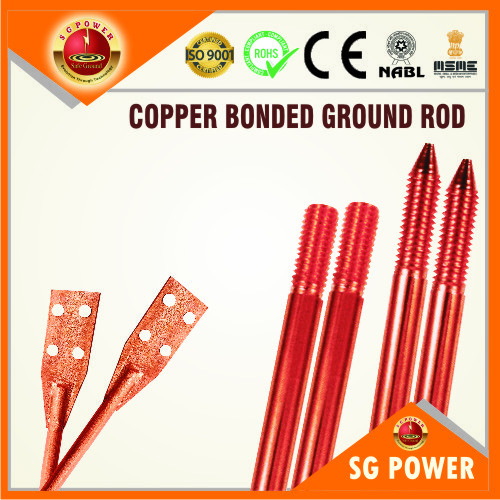

Copper Bonded Ground Rods

Copper Bonded Ground Rods

1000.00 - 1500.00 INR/Piece

Product Details:

  • Application earthing
  • Supply Ability : 400 Piece Per Day
  • Click to view more
X

Price And Quantity

  • 1000.00 - 1500.00 INR/Piece
  • 50 Piece

Product Specifications

  • earthing

Trade Information

  • 400 Piece Per Day
  • 1 Week
  • Standard Packaging
  • All India
  • ISO Certified [ 9001 : 2008 ] CE,ISO,ROHS,CPR

Product Description

Low carbon steel is utilized in the manufacturing of copper bonded steel grounding rods, which are then molecularly bonded with 99.9% pure electrolytic copper. Just like steel, this conductor is high strength and has elasticity. Also it has corrosion resistance and conductivity, like copper.

Copper atom is plated to the steel core  through molecular structure in grounding rods. Copper Bonded Rods dissipates the leaking current and prevents any asset against damage from hazards associated.

International standards are considered when manufacturing these rods. Copper layer is essential for all soil conditions, including soil with excessive salt / moisture content, as this layer resists corrosion and enhances the life.

The hole created for the installation is filled with Earth Enhancing Compound. This compound lowers the earth resistance and reduces impedance by enhancing the contact area of Rod to the soil.

Copper Bonded Rod Features:

1) No maintenance required.
2) Provides consistent performance for longer period of time.
3) Filled in the bored hole for reducing earth resistance.
4) Easy to install.
5) Excellent electrical and thermal conductivity.
6) Corrosion resistant surface.

Product Details:

1) Material : copper
2) Usage/Application : earthing
3) Size (Metre) : 12-25 mm
4) Shape : Round
5) Type : cu bonded rods
6) Weight (g) : 4-8 kgs
7) Terminal Hole (mm) : 10-12 mm

Advantages:

Copper bonded ground rods are easy to install, space saving, zero maintenance, consistently performing and longer life rods.

Specifications:

Model

Rod Length in mm

Rod Diameter in mm

Copper Bonding Thickness

SG314 CB

3000

14.2

254 microns

SG514 CB

1500

14.2

254 microns

S317 CB

3000

17.2

254 microns

SG517 CB

1500

17.2

254 microns

SG325 CB

3000

25

254 microns
